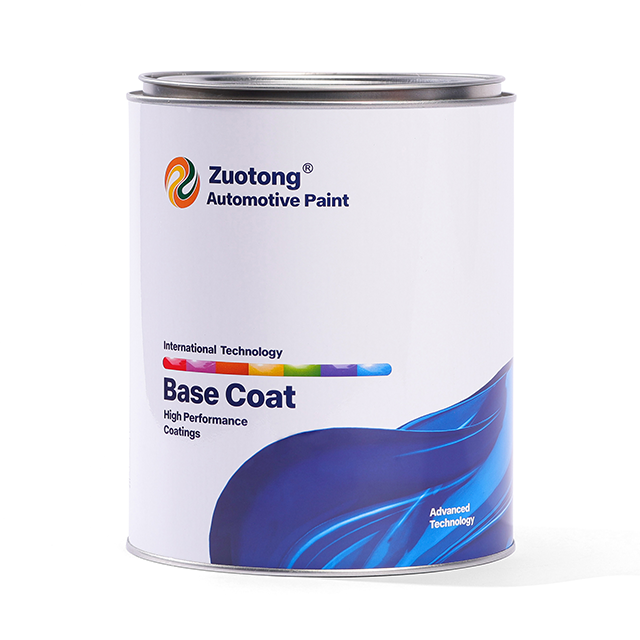

Product Features: The ZUOTONG 1K Basecoat is formulated with solid color tinters, metallic/pearl toners, and a blending resin. It offers excellent hiding power and high chroma, capable of mixing almost all automotive colors (solids, metallics, pearl finishes).
Matching Products: ZK303K 1K Basecoat Fast Drying Thinner; ZK303B 1K Basecoat Standard Drying Thinner; ZK303M 1K Basecoat Slow Drying Thinner.
Applicable Substrates: Primer surfacer surfaces abraded with 600# - 1000# grit sandpaper.
Surface Cleaning: Clean with a degreaser to remove wax, oil, and other contaminants. Wipe clean with a tack cloth.
| Mixing Ratio: 1K Basecoat + Thinner Volume Ratio 1 ： 0.8 – 1 | ||
| < 18℃ | ZK303K | 1K Fast Drying Thinner |
| 18 -- 30℃ | ZK303B | 1K Standard Drying Thinner |
| > 30℃ | ZK303M | 1K Slow Drying Thinner |
Spray Gun Caliber: Gravity-feed spray gun: 1.2-1.4mm.
Spray Pressure: 1.8-2.5 bar.
Application Method: Apply 2-3 coats with a flash-off time of 5-10 minutes between coats.
Allow a 10-15 minute flash-off after the final basecoat coat before applying the clear coat.
Notes:
1. Stir the mixture of basecoat and thinner thoroughly before spraying.
2. If the mixed basecoat sits for more than 1 hour, re-stir thoroughly before use.
3. The dry film thickness of the basecoat should not exceed 25μm, otherwise intercoat adhesion issues may occur.
4. The clearcoat must be applied within 1 hour of basecoat application. Longer delays may affect adhesion.
Packaging and Storage: 1L*12/CTN; 3.75L*4/CTN.
Store in a cool, dry, well-ventilated area. Shelf life: 2 years in unopened original containers.
Safety Information:
This product is for use by professionals only. Use appropriate personal protective equipment during application.
Observe fire prevention measures during use and storage. Keep away from children. Please contact the supplier for any inquiries.
